Workholding Supports, Stops & Rests

workholding supports



Fixtureworks is your source for innovative solutions. We offer a variety of workholding systems and solutions to get the job done faster and easier — whether you own a small shop or are an application engineer responsible for multiple production facilities. Products range from spring loaded work supports, pneumatic locators and supports, to a wide variety of gripper inserts and positioners. Everything you need for fixturing and workpiece support.

BENEFITS



EFFICIENT symbol

EFFICIENT

Increase speeds and feeds with workholding grippers, and load and unload workpiece faster with One Touch Clamps and innovative spring-loaded supports — no tools needed to clamp!

ECONOMICAL symbol

ECONOMICAL

Save your jaws! Our easily replaceable workholding grippers are the ideal contact wear surface for vise jaws, collet jaws and more.

ERGONOMIC symbol

ERGONOMIC

Throw a lever. Rotate a knob. Press a button. Our One Touch lineup of clamps and fasteners make it safer and easier for operators to do their jobs, especially where tasks are repetitive and frequent.

precision locators

PRECISE

Our locators allow for easy fastening and precision locating in one operation.

Types



Work Supports, Stops & Rests

Work Supports, Stops & Rests

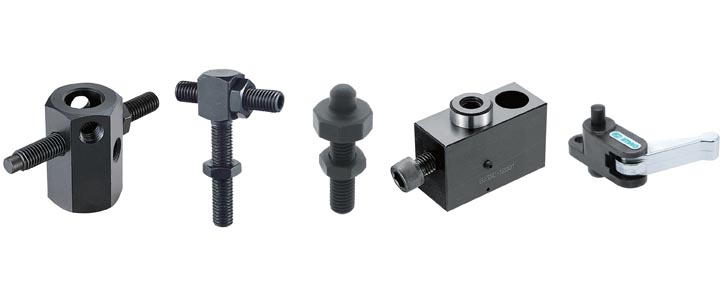

Fixtureworks’ line of workholding stops and supports are designed to assist during the machining, assembly, inspection stop and inspection support process by properly positioning the workpiece. Used to locate, stop, or support a workpiece in a wide range of applications, environments and workholding systems.



View Products

Spring Loaded Work Supports

Spring Loaded Work Supports



Designed to provide proper workpiece support. The spring loaded plunger retracts into the body of the support when the workpiece is put in place. The plunger can then be locked into placed by tightening the knob.



View Products

Pneumatic Clamping Locators

Pneumatic Clamping Locators



Pneumatic quick locating and clamping eliminates set up time in frequent changeover of fixtures, plates and toolings on automation machinery. These Air Flex locators/receivers provide quick change of fixture or tool within 0.003 mm repeat accuracy.



View Products



Pneumatic Assisted Work Supports

Pneumatic Assisted Work Supports



These compact pneumatic supports allow for remote-control activation and simultaneous control of multiple supports. The spring-loaded piston is compressed under the workpiece. After the workpiece is clamped, air is applied to lock into position.



View Products

Self-Aligning Grippers, Positioners & Thrust Screws

Self-aligning Grippers, Positioners & Thrust Screws



Self-aligning components designed to hold and position irregular and contoured surfaces. Contact surfaces include flat steel, Delrin, stainless steel, serrated, diamond surface and Sof-Top urethane. Available in threaded body, hex head or base design (cylindrical body) for mounting



View Products

Gripper Inserts & Positioners

Gripper Inserts & Positioners



Grip and penetrate the workpiece to provide superior holding power. Used in jigs, fixtures, and chuck jaws, these grippers and rest pads are versatile enough to fit any number of applications.



View Products



Line up

BJ215

Adaptors

Screw clamp adaptor, single or double width

BJ210

Adjustable Stops

Hex body, tall or short

BJ211

Adjustable Stops

Stud mount, miniature

BJ211

Adjustable Stops

Short stud mount, miniature

BJ214

Adjustable Stops

Screw top button

BJ201

Adjustable Stops

Toe stop, with or w/o T-slot nut, serrated or smooth

BJ202

Adjustable Stops

Side stop, with or w/o T-slot nut, serrated or smooth

BJ210

Adjustable Stops

Block stop, standard or mini

BJ213

Adjustable Stops

Adjustable adapter stop, hex body

BJ200

Adjustable Stops

Downthrust backstop

BUH

Ball Type Swivel Positioners

Hex head, Swivot

BBU

Ball Type Swivel Positioners

Base design, Swivot

TBU

Ball Type Swivel Positioners

Threaded body, Swivot

BJ730

Ball Type Swivel Positioners

Contact bolt

F131

Ball Type Swivel Positioners

Toggle screw

BCx

Clamping Screws

Thumb screw, ball socket head, round or flat

BJ748

Clamping Screws

Hex head, with radius tip

BJ736

Clamping Screws

Swivel screw clamp

BJ737

Clamping Screws

Swivel head screw

BJ101-02

Clamping Screws

Replacement screws for BJ101/102 and CP104/105 clamps

BSx

Clamping Screws

Ball screw, round or flat, steel or stainless

USC

Clamping Screws

Nose screw

KBJ610

Extension Bolts

Hex body, threaded mount

BUH

Pad Type Swivel Positioners

Hex head, Swivot

BBU

Pad Type Swivel Positioners

Base design, Swivot

TBU

Pad Type Swivel Positioners

Threaded body, Swivot

AMWF-W

Pneumatic Clamping Locators

Flex type, straight or tapered pneumatic pin

AMWF-L

Pneumatic Clamping Locators

Flex type, port or direct type pneumatic pin

AMNS

Pneumatic Work Supports

Compact body, spring loaded piston

BJ370

Pneumatic Work Supports

Spring loaded piston

AMWF-BU

Receivers

Flex type, diamond, straight or tapered type, for AMWF-W locator

AMWF-BU

Receivers

Flex type, for AMWF-L locator

BJ650

Remote Control Units

For BJ350/351 work supports

BJ333

Risers

Screw jack support

BJ600

Risers

Tapped end

BJ601

Risers

Miniature screw jack support

BJ332

Screw Jacks

Adjustable, tapped end

BJ331

Screw Jacks

Adjustable, threaded

BJ330

Screw Jacks

Bolt and cylindrical body

BJ733

Screw Jacks

Tips only, for BJ330 screw jacks

BJ362

Spring Loaded Supports

Compact body, cam lever, left or right

BJ351

Spring Loaded Supports

Cylindrical body, heavy duty

BJ350

Spring Loaded Supports

Heavy duty

BJ360

Spring Loaded Supports

Minature body

MP-2805x

Spring Loaded Supports

Heavy duty, with or w/o tip

MP-2805x

Spring Loaded Supports

Low profile, heavy duty, with or w/o tip

BJ351-A

Spring Loaded Supports

Horizontal work support

BJ352

Spring Loaded Supports

Cam handle

BJ371

Spring Loaded Supports

One touch precision locking

PTNS1

Spring Loaded Supports

Nut runner hex head locking

TSH

Thrust Screws

Flat cone, round ball, or serrated ball

TST

Thrust Screws

Threaded body, flat cone, round ball, or serrated ball

BJ760

Work Rests

Screw rest pad

BJ763

Work Rests

Flat feet

ST

Work Stops

Stop pad

CP300

Work Supports

Extendable, with knob

BJ300

Work Supports

Support cylinder

BJ732

Work Supports

Contact bolt, radius contact surface

CP700

Work Supports

Locator, retractable

CP701

Work Supports

Locator, extendable

BJ731

Work Supports

Toggle pad, 9-degree swivel

BJ764/F130

Work Supports

Head screw, steel or stainless

BJ440

Work Supports

V-block, horizontal, standard or miniature

BJ310

Work Supports

Support block

BJ631/632

Work Supports

Stackable extension riser block
