Mechanical Linear Actuators

cc



No part selection! No designing! No assembly! IMAO Fixtureworks' pre-assembled Linear Unit can be used with simple manual adjustments without complex processes of parts selection, design and assembly. The internal parts are protected from dust by its aluminum profile body and dustproof sheet.

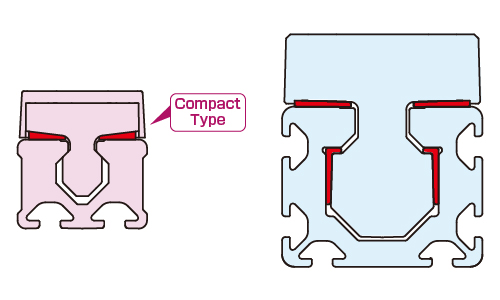

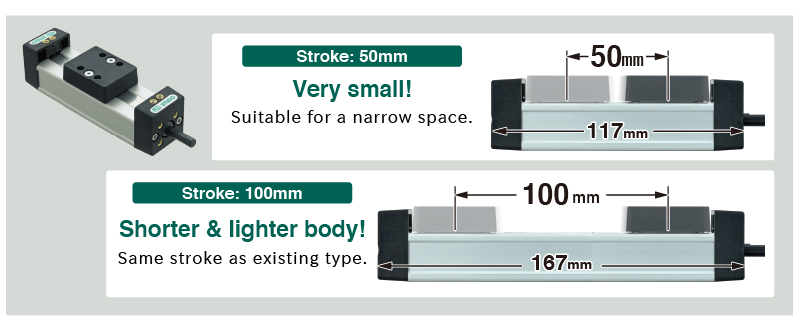

Compact Type Available

cc





Application Examples

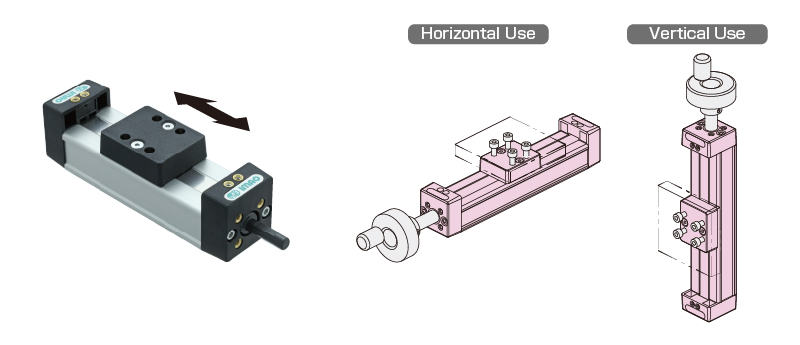

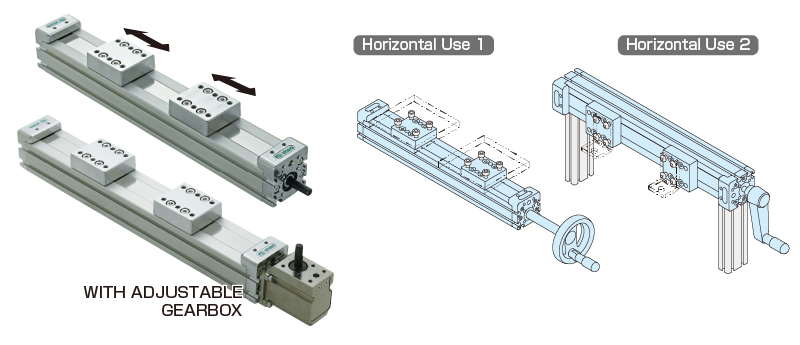

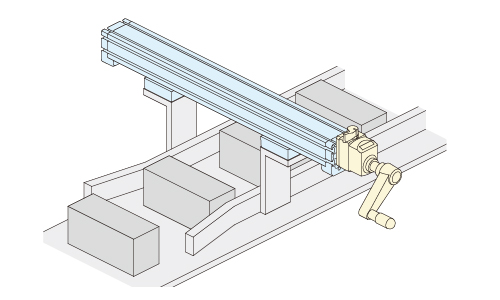

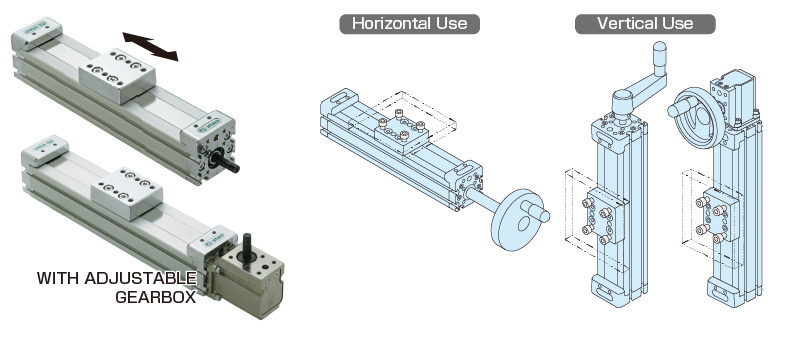

Horizontal Use

cc

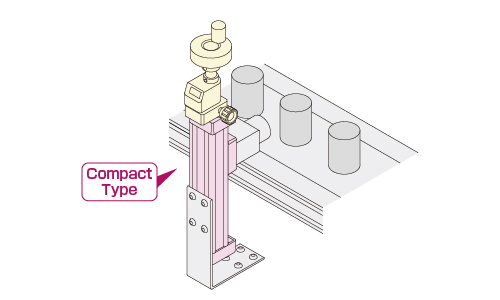

Vertical Use

cc

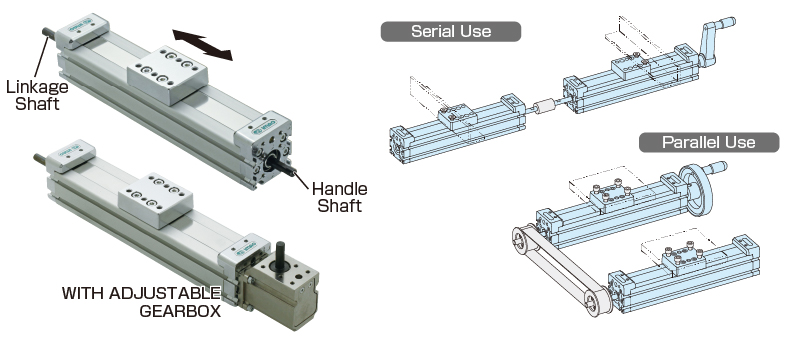

Serial Use

cc

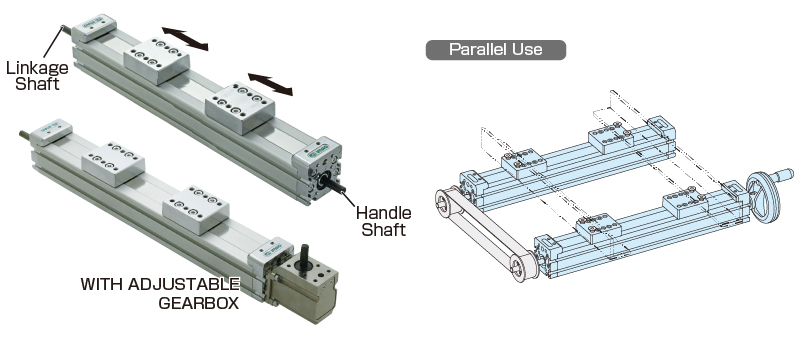

Parallel Use

cc

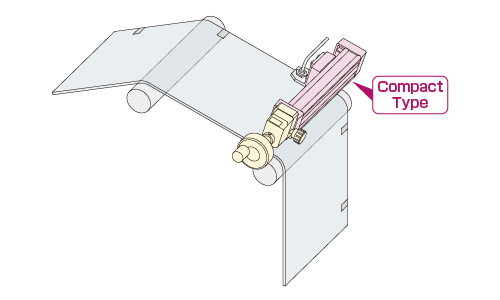

Conveyer Guide Adjustment

cc

Camera Position Adjustment

cc









Registration Marks Sensor Position Adjustment

cc

Stamping Rest Position Adjustment

cc









Stopper Position Adjustment

cc

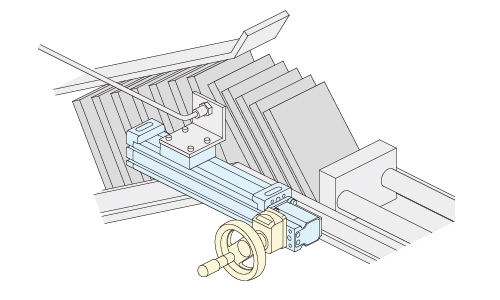

Counting Sensor Position Adjustment

cc









Holder Belt Height Adjustment

cc

Conveyer Guide Adjustment

cc







Mechanism

The abrasion resistance and self-lubricating material of sliding parts extends unit life.

cc







Types

Compact Single Carriage

Carriage moves along with rotation of the shaft.

cc



Compact Linkage Carriage

The actuators should be used in pairs connected at shafts.

cc











Standard Single Carriage

Carriage moves along with rotation of the shaft.

cc









Standard Dual Carriage

Carriages move towards the center or opposite directions along with the rotation of the shaft.

cc

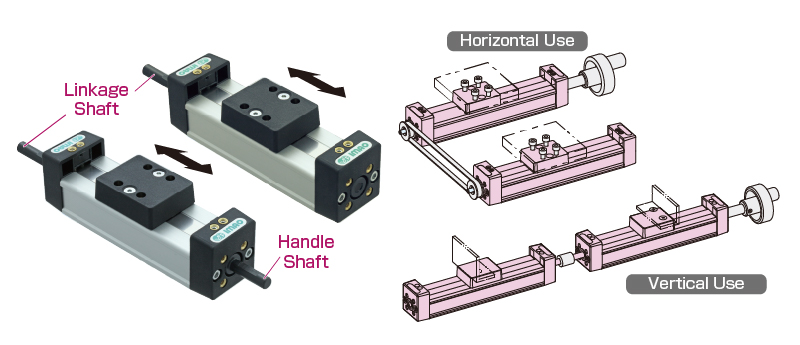

Linkage Single Carriage

The actuators should be used in pairs connected at shafts.

cc









Linkage Dual Carriage

Carriages move towards the center or opposite directions along with the rotation of the shaft. The actuators should be used in pairs connected at shafts.
