Innovations In Standard Fixturing &
Machine Components

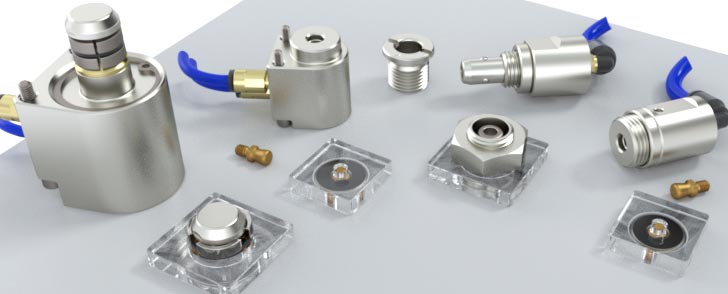

standard fixturing and machine Components

Fixtureworks offers an innovative line of standard components to meet your application requirements. Innovative components including adjustable torque handles, shaft locking clamps, form holding clamps and pneumatic components are just a few options. View the products below.

Types



Torque Limiting Handles

Torque Limiting Handles



Designed to be used with a number of our standard One-Touch swing clamps as well as for use on custom clamping applications where overtightening must be prevented.



View Products

Quick Change Flex Clamping Locators

Flex Clamping Locators



Locate + fasten in one operation — without tools.



View Products

Pneumatic Assisted Clamps

Pneumatic  Assisted Clamps



Select clamp styles with pneumatic operation for remote-control activation and simultaneous control of multiple clamps.



View Products



ID/OD Form Holding Clamps

ID/OD Form Holding Clamps



Designed to clamp onto the outside or inside diameters of the workpiece. Ideal for oddly shaped workpieces.



View Products

Quick Action Spindle & Shaft Locking Clamps

Quick Action Spindle & Shaft Locking Clamps



Shaft clamps for quick and easy locking and quick action locks for sliding adjustment.Improves setup time and reliability in various devices.



View Products





Line up

QCPS

Collars

Use with QCPS and QCPSS sliding locks

CP722

Flex Clamping Locators

Adjustable handle, tapered or straight

CP730

Flex Clamping Locators

Hex head, tapered or straight

CP731

Flex Clamping Locators

Cam handle, tapered or straight

CP124

Form Holding Clamps

OD holding, square wedge style

CP123

Form Holding Clamps

OD holding, round wedge style

CP130

Form Holding Clamps

ID holding, wedge style

CP131

Form Holding Clamps

ID holding, mini

MBOD

Form Holding Clamps

OD holding, concentric

CP-TCW

Locator Torque Wrenches

Adjustable, with or w/o socket

AMWPD

Pneumatic Clamps

Pull clamp, clamping pin or clamping screw

AMCH-W

Pneumatic Clamps

OD holding, machinable aluminum jaws

AMWSW

Pneumatic Clamps

Swing clamp, with or w/o detecting ports

AMWD

Pneumatic Clamps

Hold down clamp, magnetic sensor mountable

CP735-P

Protective Covers

Use on CP735 Flex receivers

CP725-P

Protective Covers

Use on CP725 Flex receivers

CP726-P

Protective Covers

Use on CP726 Flex receivers

CP727

Receivers

Use with knob and handle style Flex locators

CP735

Receivers

Use with hex and cam style Flex locators, tapered or straight

CP725

Receivers

Use with Flex CP720 locators

CP726

Receivers

Use with Flex CP721 locators

PSLC

Shaft Locking Clamps

Pneumatic, heavy duty

PSLC

Shaft Locking Clamps

Pneumatic, compact

QCSQ

Sliding Locks

Square bar, plastic knob or stainless handle

QCSL

Sliding Locks

Slotted hole, plastic or stainless knob

LSM

Sliding Locks

Linear-motion stopper

QCPS

Sliding Locks

Push lock clamp

QCPSS

Sliding Locks

Push lock clamp, heavy duty

ATCL

Torque Limiting Handles

Adjustable torque, steel
