One-Touch Clamps Evolution

stablelock clamps



New in the One-Touch Clamp line, Stablelock clamps offer enhanced options with greater stability and reliability, with easy One-Touch operation.



STABLELOCK ONE-TOUCH CLAMP FEATURES:

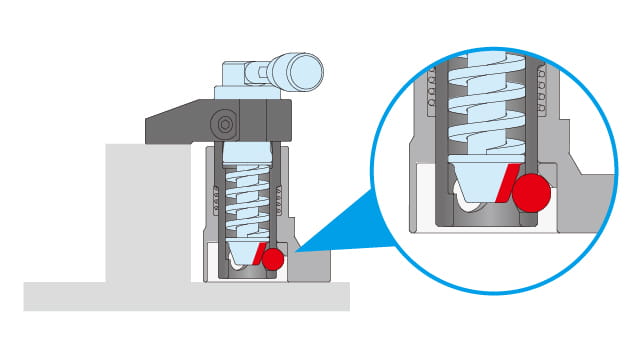

  • Updated Rigid Clamping Mechanism
    • Ball and tapered wedge clamping design with spring force for superior mechanical positive clamping.



  • Stable & Constant Clamping Force
    • Clamping force is constant and strong no matter who is operating.



  • Clear Clamping Completion
    • "Click" feel at the end of clamping ensures reliable and safe operation.



  • Clamping Line Indicator
    • Indication lines on handle and body align to clearly show when the clamp is locked or unlocked.



cc





LINE UP:

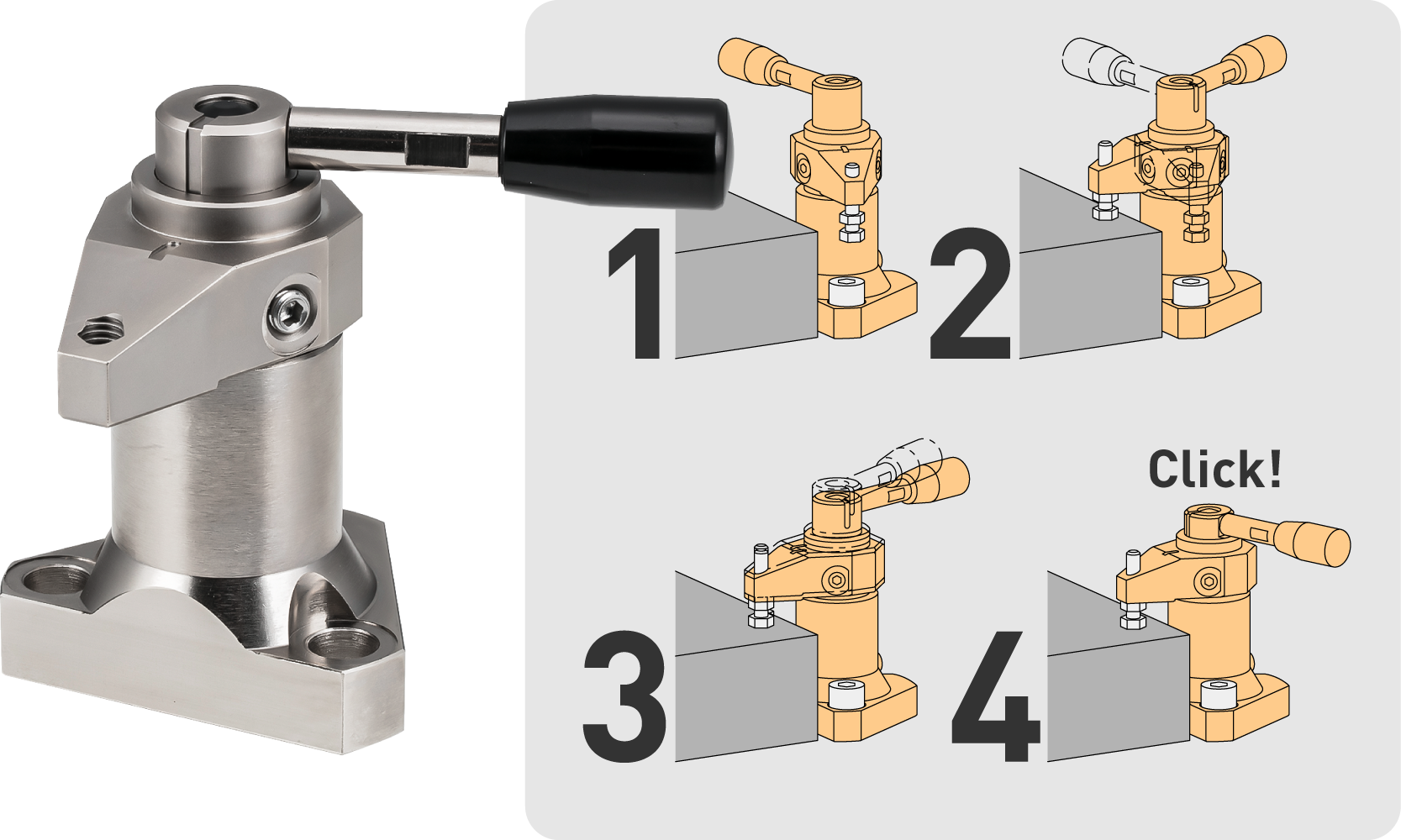

QLSWW Swing Clamp

  • Swing into position and clamp with a turn of the handle
  • Clockwise and counterclockwise clamping directions both available
cc

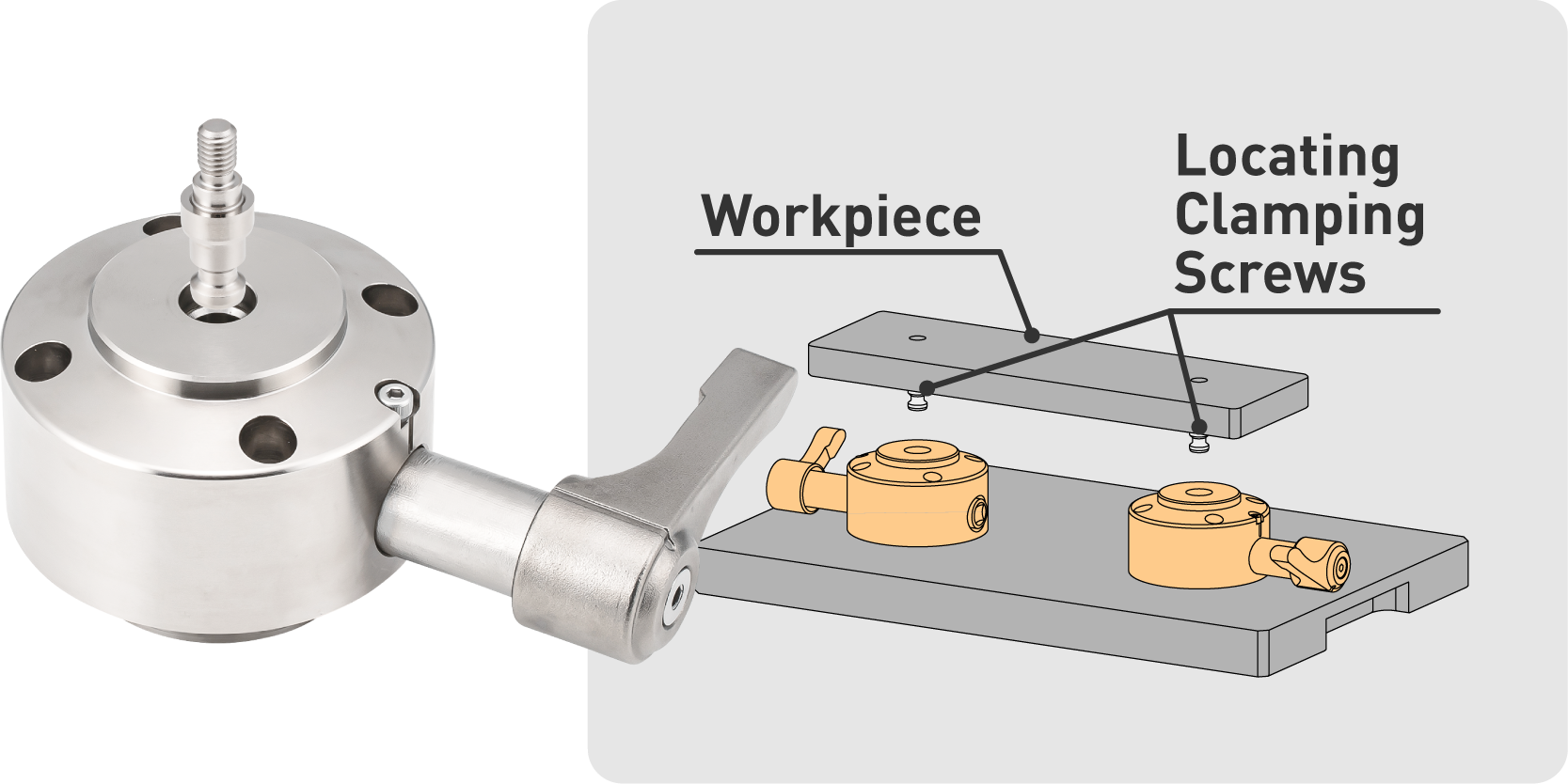

QLPDW Pull Clamp

  • Pulling the clamping pin attached to the workpiece enables a fixture with easy access to tools
  • Standard and locator-type screws both available
  • Extension unit available for operating clamp at a distance
cc

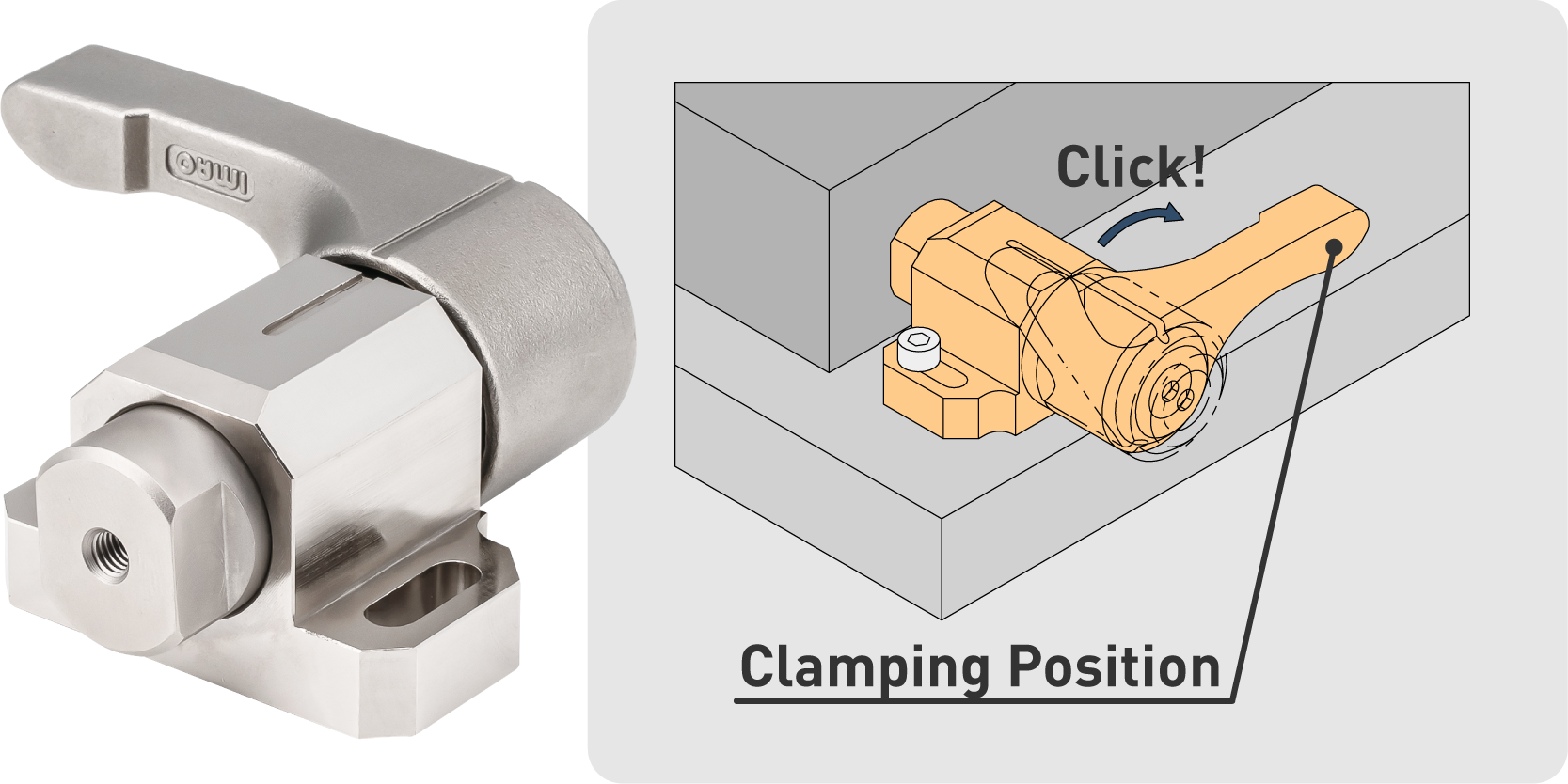

QLPUW Push Clamp

  • Simply turn the handle for push clamp operation
  • Completion of clamping indicated by "click" and by alignment line on handle and body
cc

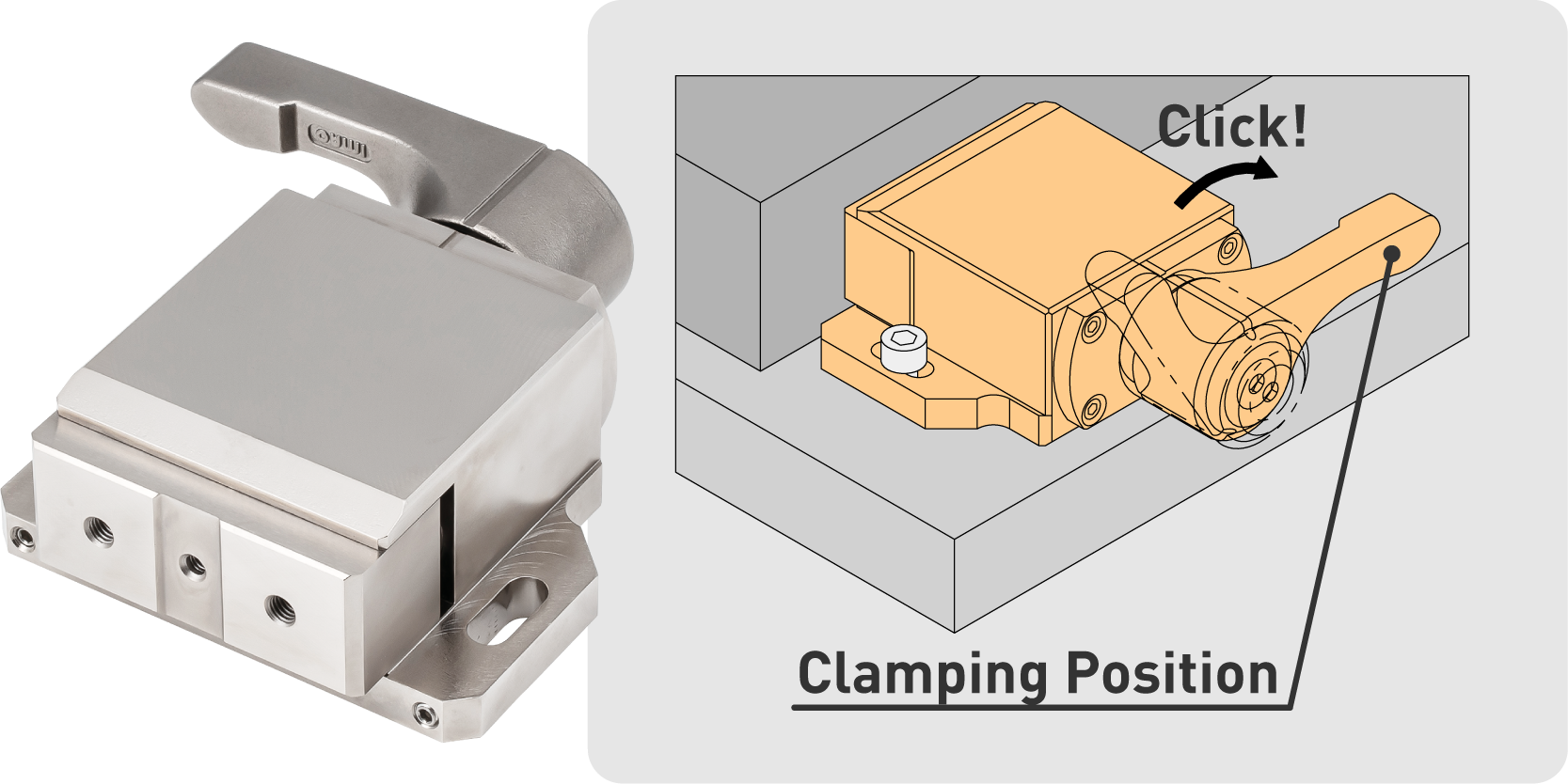

QLSCW Side Clamp

  • Clamping mechanism forces jaw forward and downward to prevent lifting of the part
  • Completion of clamping indicated by "click" and by alignment line on handle and body
cc

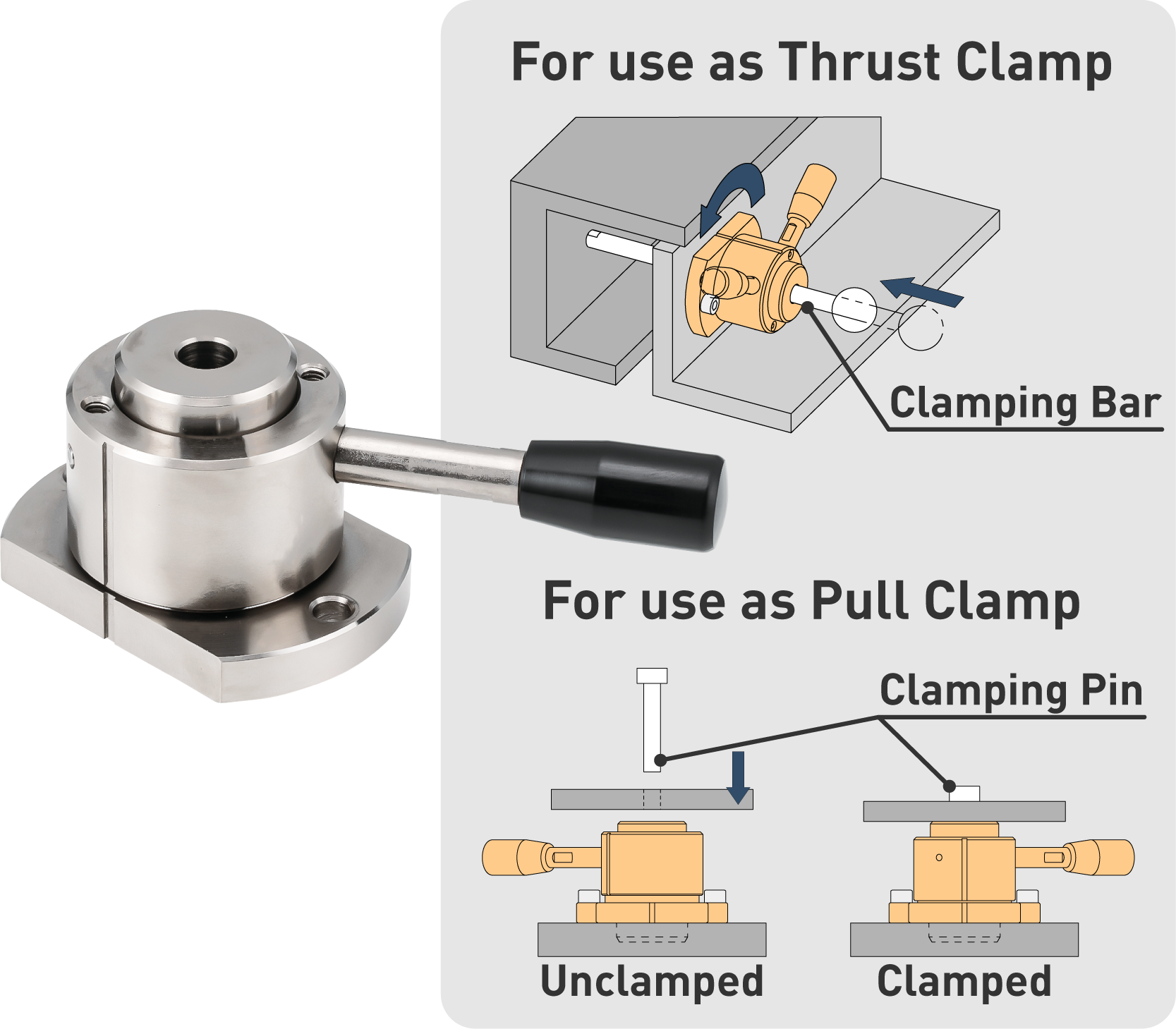

QLRCW Thrust Clamp

  • Can be used as both a thrust clamp and a pull clamp
  • Use as a thrust clamp with addition of clamping bar
  • Use as a pull clamp with addition of clamping pins
cc
