Precision Workholding Locator Components

Quick changeover with precision locating.

precision locators

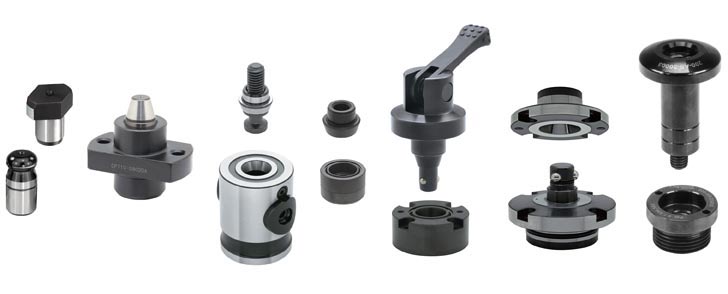

Fixture locator components for precision mounting, alignment, and positioning during the machining or inspection process to optimize workpiece repeatability. Traditional locating pins, spring loaded locators and extendable variations are available. Locating devices in jig and fixture applications. Innovative systems such as SpeedLoc locating, the Modular Pull Clamp System and the Flex Locator System allows for easier and more accurate locating and positioning.

BENEFITS OF QUICK CHANGEOVER WORKHOLDING COMPONENTS



ergonomic

EFFICIENT

Slash time neeeded to load workpieces and swap out pallets, plates, jig and fixtures.

efficiency

ECONOMICAL

Small footprint solutions, and a reasonable price to match. Increase productivity with a minimal investment.

efficiency

PRECISE

Up to +/- 0.0004" or 0.008 mm repeatability, depending on the product.

no tools

NO TOOLS

Flex Locators fasten and locate in one operation - No tools needed.



Types of Fixture Workholding Products



5 Axis Modular Pull Clamp System

Modular Pull Clamp



Completely modular, this versatile clamping system allows easy height adjustment by coupling the modules. Ideal for 5-axis machining.



View Products

Quick Change Flex Clamping Locators

Flex Locators



Locate + fasten in one operation — without tools.



View Products

SpeedLoc Locator System

SpeedLoc



The system is made up of precision locators, receivers, and liner bushings. Designed to solve the common difficulties associated with precision attachment and removal of fixtures, fixture plates, and accessories. This unique system alleviates the prying, pounding, and/or use of jack screws of associated methods.



View Products



Locating Pins & Receivers

locating pins



Traditional work locating pins for alignment and precision locating.



View Products





Line up of Quick Changeover Working Locators

MPAL

Bushings

SpeedLoc Locator System, tandard liner

MPAL

Bushings

SpeedLoc Locator System, stepped liner

CP723

Flex Clamping Locators

Quarter turn knob

CP722

Flex Clamping Locators

Adjustable handle, tapered or straight

CP730

Flex Clamping Locators

Hex head, tapered or straight

CP731

Flex Clamping Locators

Cam handle, tapered or straight

CP720

Flex Clamping Locators

Blind style

CP721

Flex Clamping Locators

Through style

CP710

Locating Pins

Spring loaded, standard or accurate

BJ700/701

Locating Pins

Screw type, standard or precision

02020

Locating Pins

Diamond, round or low-profile round head

031x

Locating Pins

Round or diamond head, low profile

03108

Locating Pins

Diamond or round head, steel or stainless steel, w/ shoulder

03107

Locating Pins

Diamond or round head, steel or stainless steel

CP150

Modular Pull Clamp System

Flanged module

CP151

Modular Pull Clamp System

Double module

CP152

Modular Pull Clamp System

Single module

AMWF-W

Pneumatic Clamping Locators

Flex type, straight or tapered pneumatic pin

AMWF-L

Pneumatic Clamping Locators

Flex type, port or direct type pneumatic pin

CP726-P

Protective Covers

Use on CP726 Flex receivers

MPAR

Receivers

SpeedLoc Locator System, thread-in

MPAR

Receivers

SpeedLoc Locator System, bolt-in

CP727

Receivers

Use with knob and handle style Flex locators

CP735

Receivers

Use with hex and cam style Flex locators, tapered or straight

CP725

Receivers

Use with Flex CP720 locators

CP726

Receivers

Use with Flex CP721 locators

AMWF-BU

Receivers

Flex type, diamond, straight or tapered type, for AMWF-W locator

AMWF-BU

Receivers

Flex type, for AMWF-L locator

MPAS

SpeedLoc Locator System

Locator, standard mount

MPAS

SpeedLoc Locator System

Locator, flush mount
