IMAO Fixtureworks Work Supports are spring-loaded supports that can prevent a workpiece from chattering. The piston fits to the bottom surface of the workpiece and locks to prevent vibration or deformation during machining, improving machining accuracy. Also, it can be used as the backup pin during mounting or inspection of electric components.



Features



Conventional Method



cc

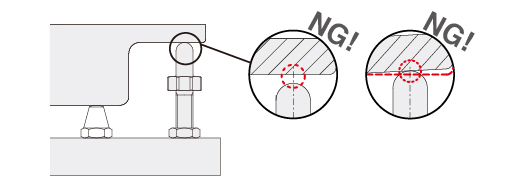

Set the tip of a screw jack to the workpiece bottom and hold it with a nut. This type of setup is done by hand with trained techniques to prevent any clearance between workpiece and screw tip or any workpiece lift-up.

IMAO Fixtureworks' Solution



cc

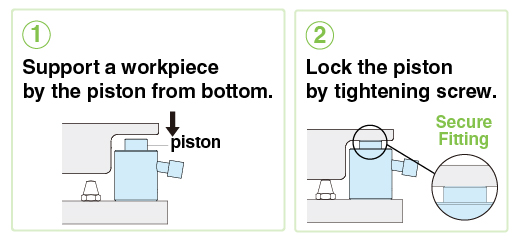

The piston can be locked/unlocked with easy operation and keeps a stable support capacity for preventing deflection of workpiece.

The spring-loaded piston fits to the workpiece bottom. Anyone can set up the support easily!



Application Example

cc

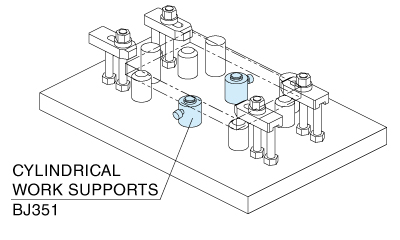

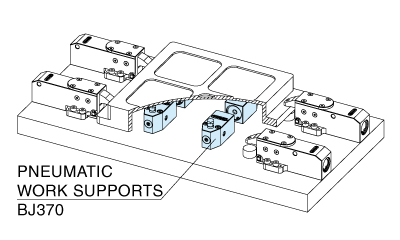

cc



Line up

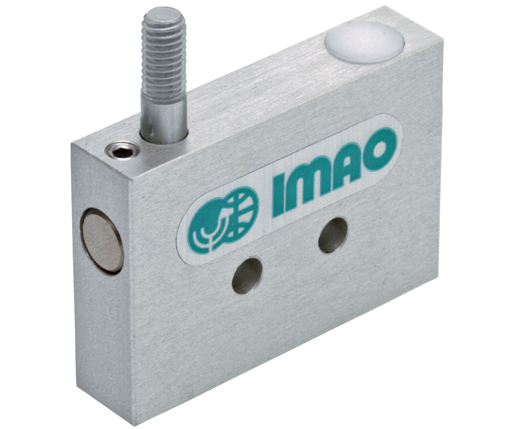

AMNS

Pneumatic Work Supports

Compact body, spring loaded piston

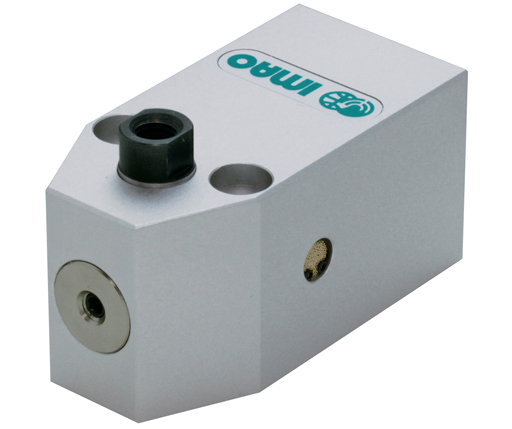

BJ370

Pneumatic Work Supports

Spring loaded piston

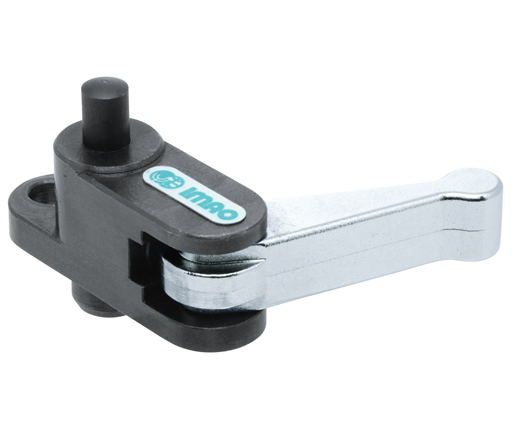

BJ362

Spring Loaded Supports

Compact body, cam lever, left or right

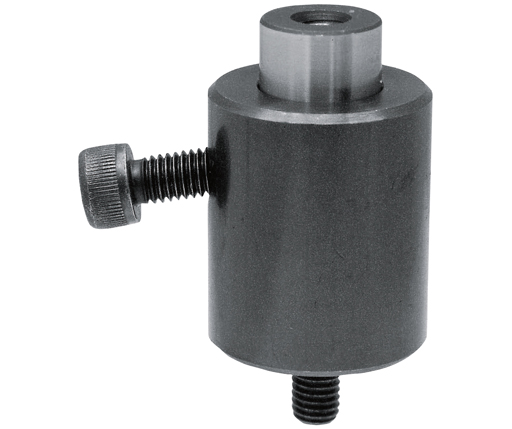

BJ351

Spring Loaded Supports

Cylindrical body, heavy duty

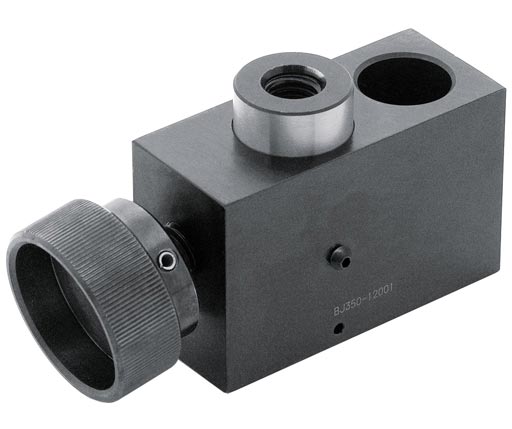

BJ350

Spring Loaded Supports

Heavy duty

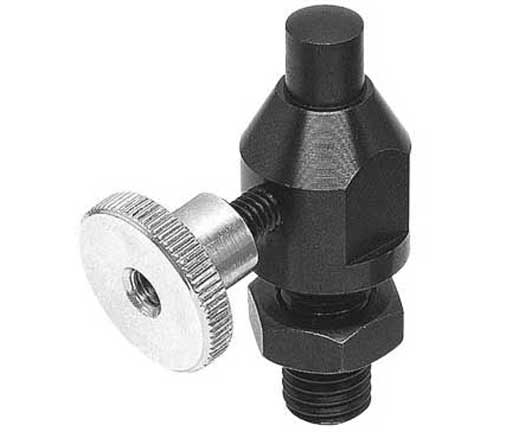

BJ360

Spring Loaded Supports

Minature body

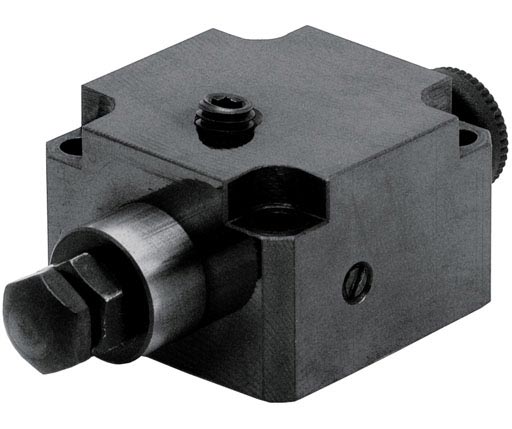

BJ351-A

Spring Loaded Supports

Horizontal work support

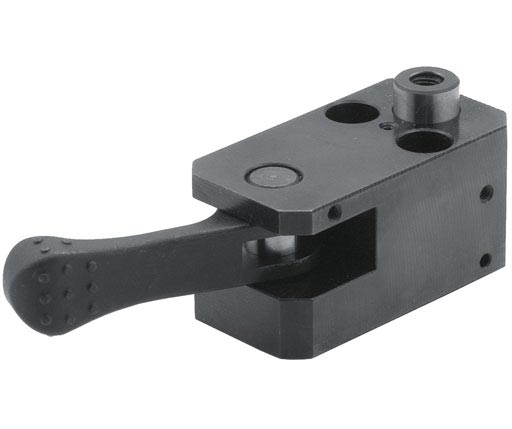

BJ352

Spring Loaded Supports

Cam handle

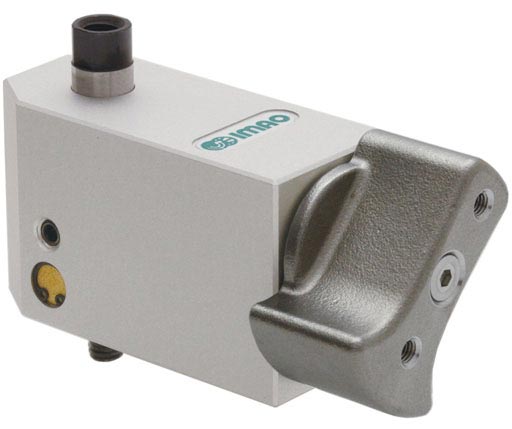

BJ371

Spring Loaded Supports

One touch precision locking

CP300

Work Supports

Extendable, with knob

BJ300

Work Supports

Support cylinder

CP700

Work Supports

Locator, retractable

CP701

Work Supports

Locator, extendable
