Fixtureworks
Fixtureworks

Side & Edge Clamps

cc

No Tool Interface
in top surface machining!

16-style clamps meet any workholding requirement!

cc



Manual side clamps from IMAO Fixtureworks grip the side of a workpiece to keep the top face free of obstructions in the fixture. Strong downward clamping forces prevent the workpiece from lifting.



Product Video



Features



Easy Tool Access!

No tool interference with clamp. Low profile design allows easy milling and machining.

cc
cc



Downward Clamping!

Jaw moves down to press a workpiece towards the fixture plate. Secure workholding is key to better machining accuracy.

cc
cc
cc



Many Styles and Sizes!

Compact, low profile, heavy duty, etc. are all available to help you find the perfect clamping solution.

cc



Features



cc
cc
cc

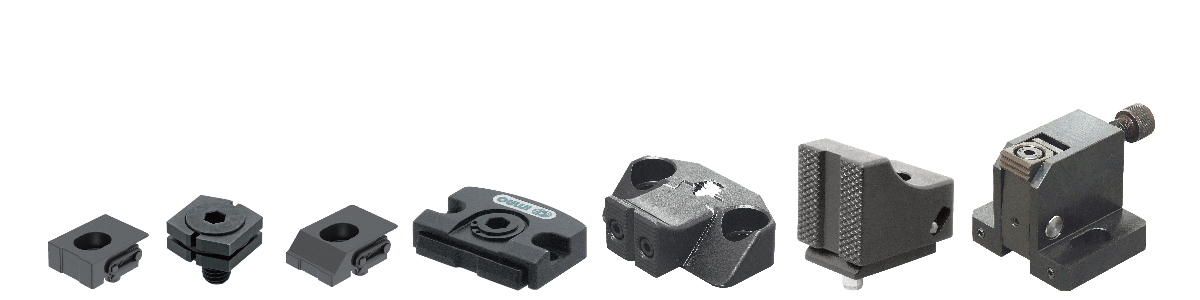

IMAO Fixtureworks side, edge and toe clamps provide a wide range of clamping solutions for various applications of CNC machining.



Line up

QLSCL

Side Clamps

Cam type, low profile toe, with or w/o handle

CP101

Side Clamps

Single jaw

CP100

Side Clamps

Single jaw, center mount, adjustable support

CP102

Side Clamps

Wide jaw

BJ161

Side Clamps

Spiral cam

CP135

Side Clamps

Cam type, compact, with or w/o handle

F658

Side Clamps

Cam type, system T, complete system set or separate components

BJ162

Side Clamps

Spiral cam edge

CP110/112

Side Clamps

Push block clamp or V-pad, to clamp round workpieces

BJ102

Side Clamps

Adjustable, smooth or serrated jaw, with or w/o T-slot nut

BJ101

Side Clamps

Toe type, adjustable, smooth or serrated jaw, with or w/o T-slot nut

CP105

Side Clamps

Compact, smooth or serrated jaw

CP104

Side Clamps

Toe type, compact, smooth or serrated jaw

CP107

Side Clamps

Compact, rear mount

CP106

Side Clamps

Toe type, compact, rear mount

QLSCH

Side Clamps

Cam handle

CP133/134

Side Clamps

Compact, side or toe type

MB-241x/541x

Side Clamps

Cam type, compact

BJ100

Side Clamps

Pivoting, heavy
