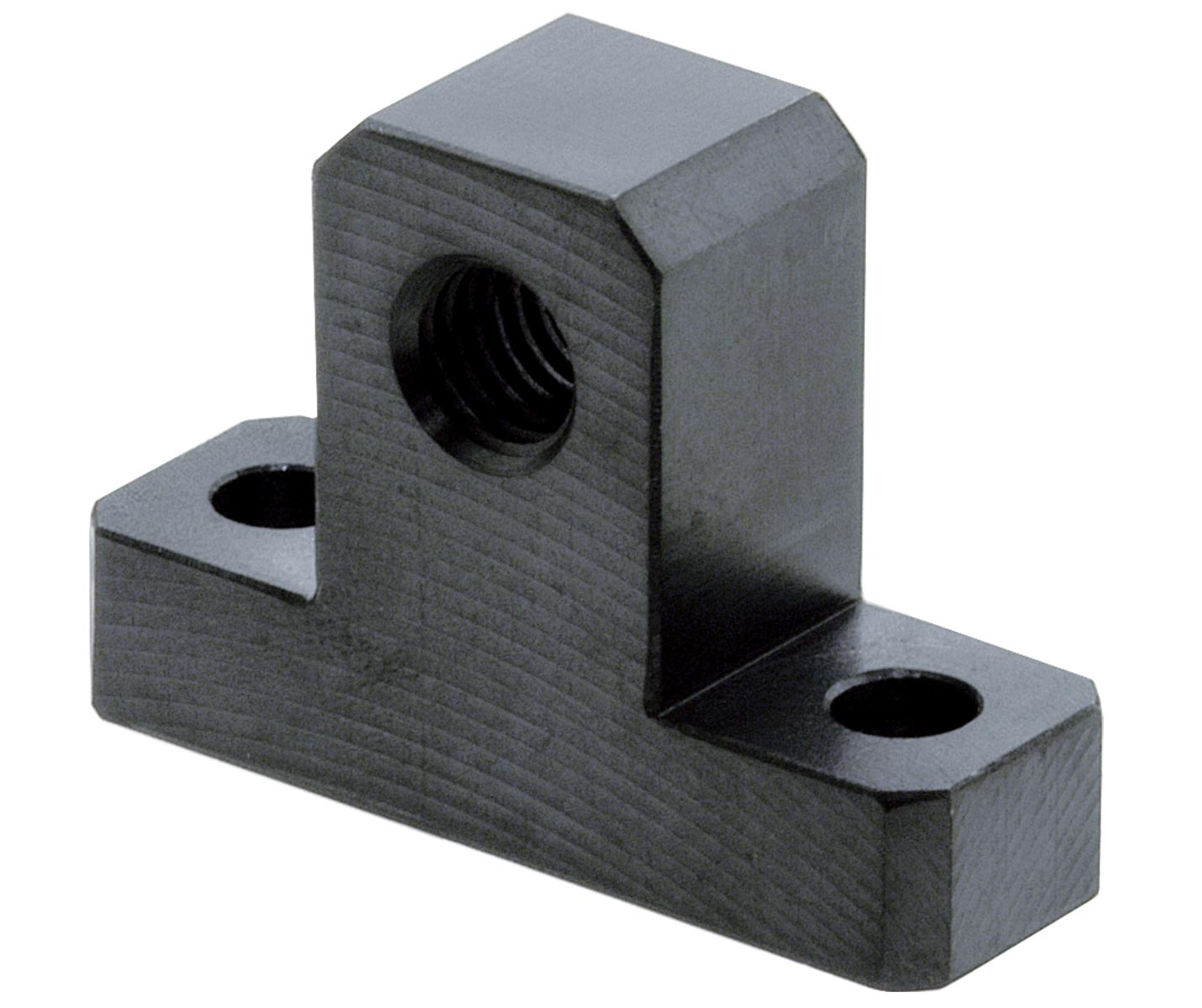

Part Number | Type | T Thread mm | D mm | L mm | L1 mm | L2 mm | W mm | W1 mm | W2 mm | H mm | H1 mm | H2 mm |
---|---|---|---|---|---|---|---|---|---|---|---|---|
BJ215-08020S | A | M8x1.25 | 5.5 | 38 | 28 | 16 | 12 | - | - | 28 | 20 | 8 |
BJ215-08020W | B | M8x1.25 | 5.5 | 38 | 28 | 16 | 22 | 5 | 12 | 28 | 20 | 8 |
BJ215-10025S | A | M10x1.50 | 6.5 | 50 | 36 | 20 | 16 | - | - | 35 | 25 | 10 |
BJ215-10025W | B | M10x1.50 | 6.5 | 50 | 36 | 20 | 32 | 7 | 18 | 35 | 25 | 10 |
BJ215-12032S | A | M12x1.75 | 9 | 60 | 42 | 24 | 19 | - | - | 44 | 32 | 12 |
BJ215-12032W | B | M12x1.75 | 9 | 60 | 42 | 24 | 38 | 9 | 20 | 44 | 32 | 12 |
BJ215-16040S | A | M16x2.00 | 11 | 75 | 54 | 32 | 25 | - | - | 56 | 40 | 16 |
BJ215-16040W | B | M16x2.00 | 11 | 75 | 54 | 32 | 50 | 11 | 28 | 56 | 40 | 16 |
