Versatile Lateral Spring Pins

Available online

lateral spring pin

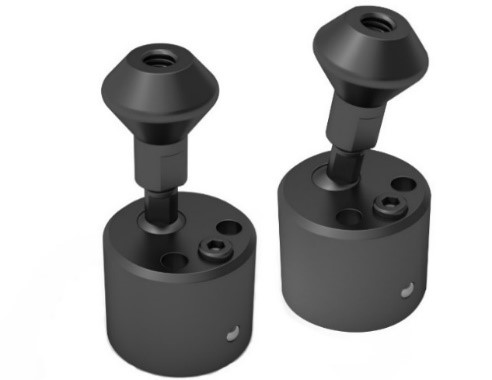

Fixtureworks® (Fraser, MI) announces the introduction of lateral spring pins to its expanding lineup of locators and workholding solutions. Lateral positioning pins are ideal for securing parts or to snap parts into place before the primary clamping is actuated. These spring-loaded pins are installed in a mounting hole by tightening a single screw, with no need for special tools. The innovative, adjustable pivot design allows the pin to adjust up to 11 degrees, providing flexibility in locating parts with large tolerances.

August 18, 2020



These versatile pins can be fitted with different styles of replaceable pivot tips, allowing users to customize the point of contact to secure parts as needed. Standard, ball, and pin tip styles are offered, as well as a blank tip version that can be shaped as needed for your specific part or application.



Lateral pins are designed with a metal-to-metal seal that prevents debris from entering the inner mechanism interference, a common issue with traditional spring-loaded pins. The pins are made from heat treated steel with a clear nitride finish or 300 series stainless steel. Pins are available in three sizes ranging in diameter from .74 to 1.12 inches, and for each pin size a light, medium and heavy spring force ranging from 5 to 62 lbs is offered.



Three stainless steel socket head cap screws for mounting are also included with fasteners, and receptacles are sold separately.



View the complete line of lateral spring pins below:

ELP

Lateral Spring Positioners

Steel or stainless steel

ELPT

Lateral Spring Positioners

Pin tips only, steel or stainless
