Sliding Lock - Push Lock Clamp (QCPS)
Sliding Lock - Push Lock Clamp (QCPS)

Part Options


Description


These push lock clamps provide easy, tool-less locking with a 90-degree turn of the handle for slide and angle adjustment. They are versatile enough to clamp on various objects such as square bars, round shafts and linear rails in many sizes. An internal spring keeps the clamping force constant to prevent over/under tightening. An indication line and the “touch” of a click allow user more secure and reliable operation.

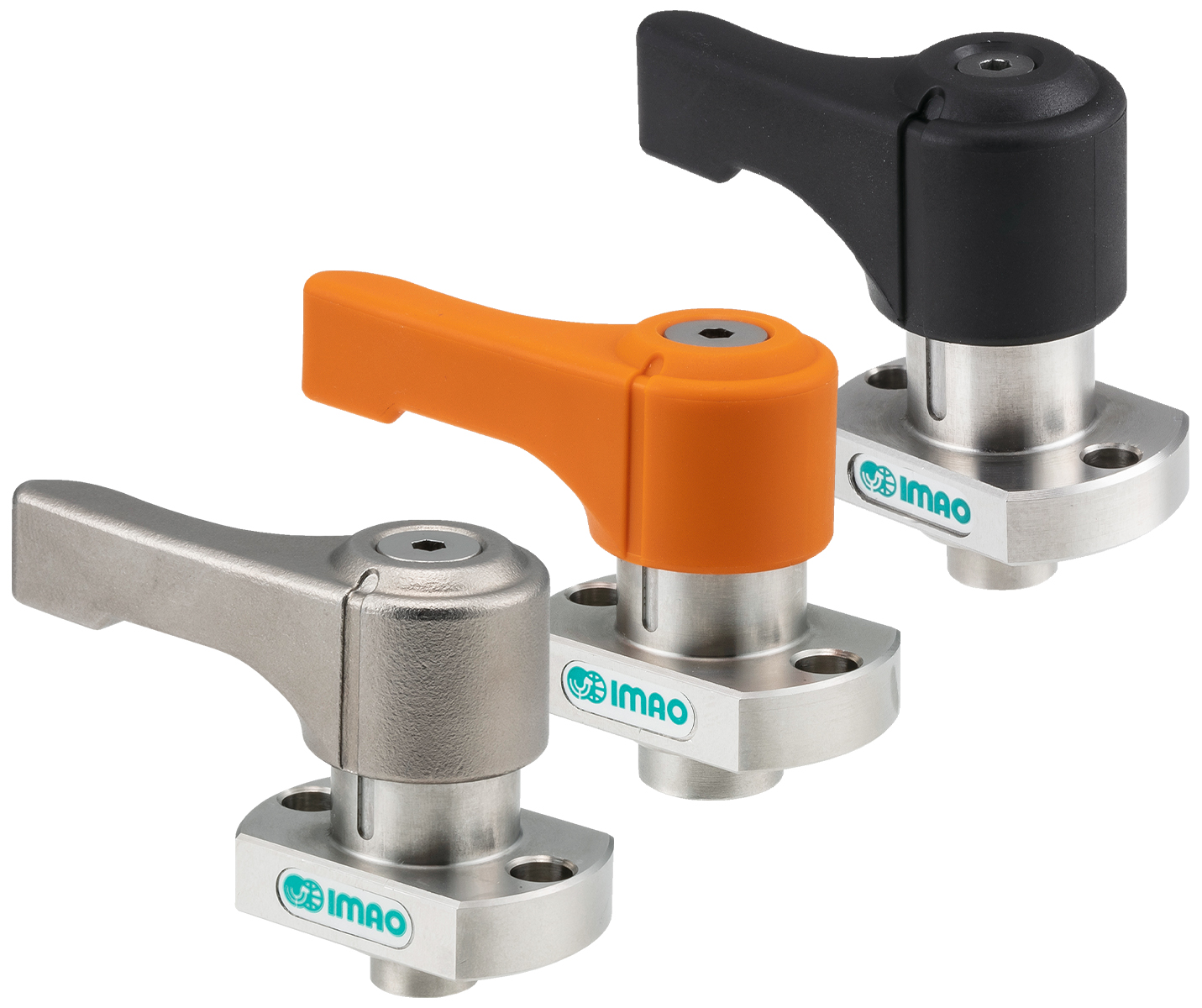

Two tip types are available: A flat tip that minimizes damage to an object, and a diamond tip that provides high holding force. Choose a black or orange plastic handle, or stainless steel. For clamping onto a round shaft, a shaft collar is also available (sold separately). The clamp body is made from 303 stainless steel. The handle is made from polyamide or 304 stainless steel.
