BJ721/723

Locating Pins

Round or diamond, w/ shoulder

Product Types

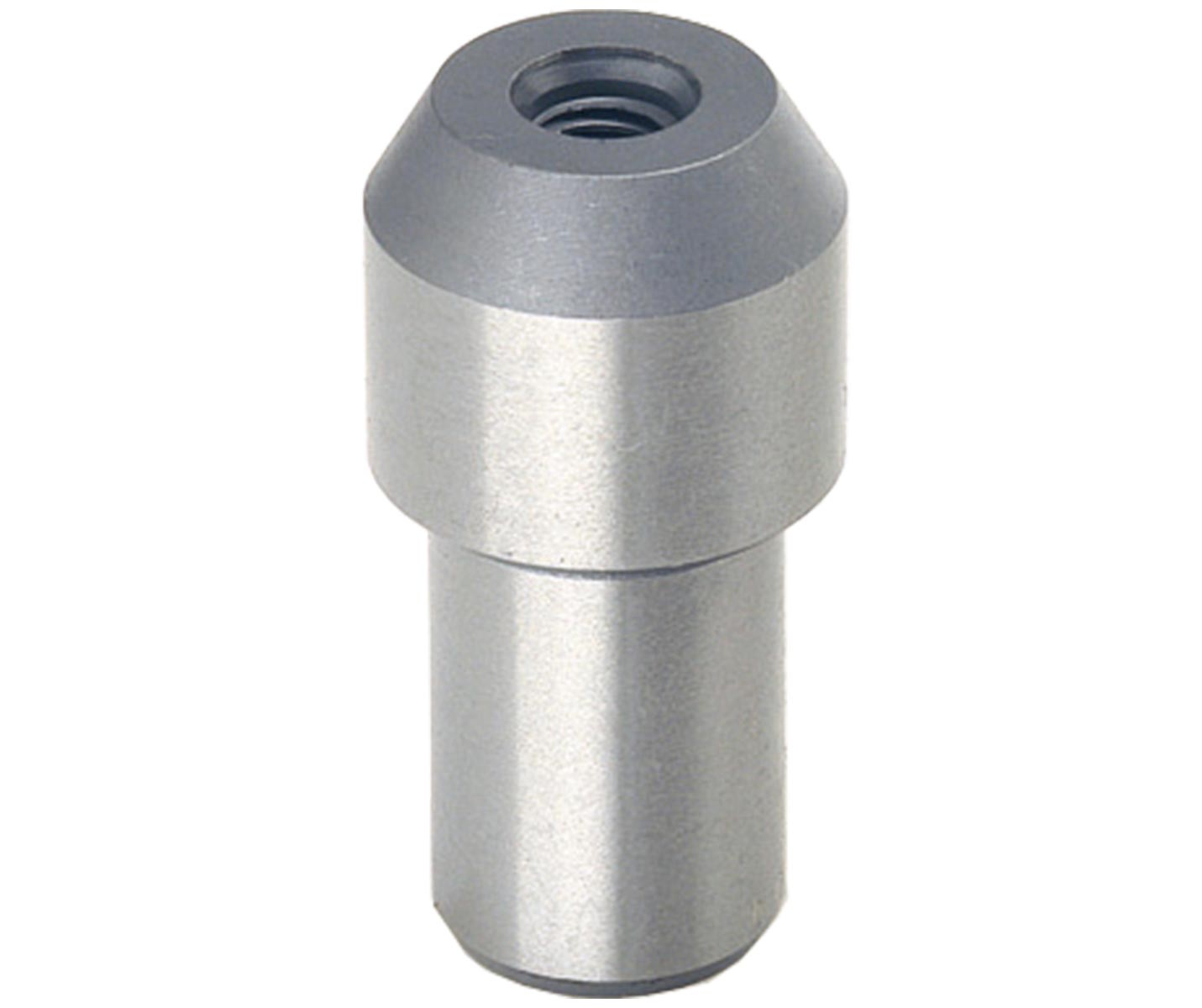

Work Locators - Locating Pin w/ Shoulder - Round (BJ721)
Work Locators - Locating Pin w/ Shoulder - Round (BJ721)

Part Options

DetailPart NumberT
Thread
mm
D
mm
p6
D1
mm
h6
L
mm
L1
mm
L2
mm
L3
mm

Description


These round style locating pins are used to accurately position and align fixtures and workpieces. They can also be used as a hardened stop and as feet for fixtures. Made from SK95 steel, hardened and precision ground.
