S Series

Centering Vises

Basic or premium, with GripSert-equipped jaws

Product Types

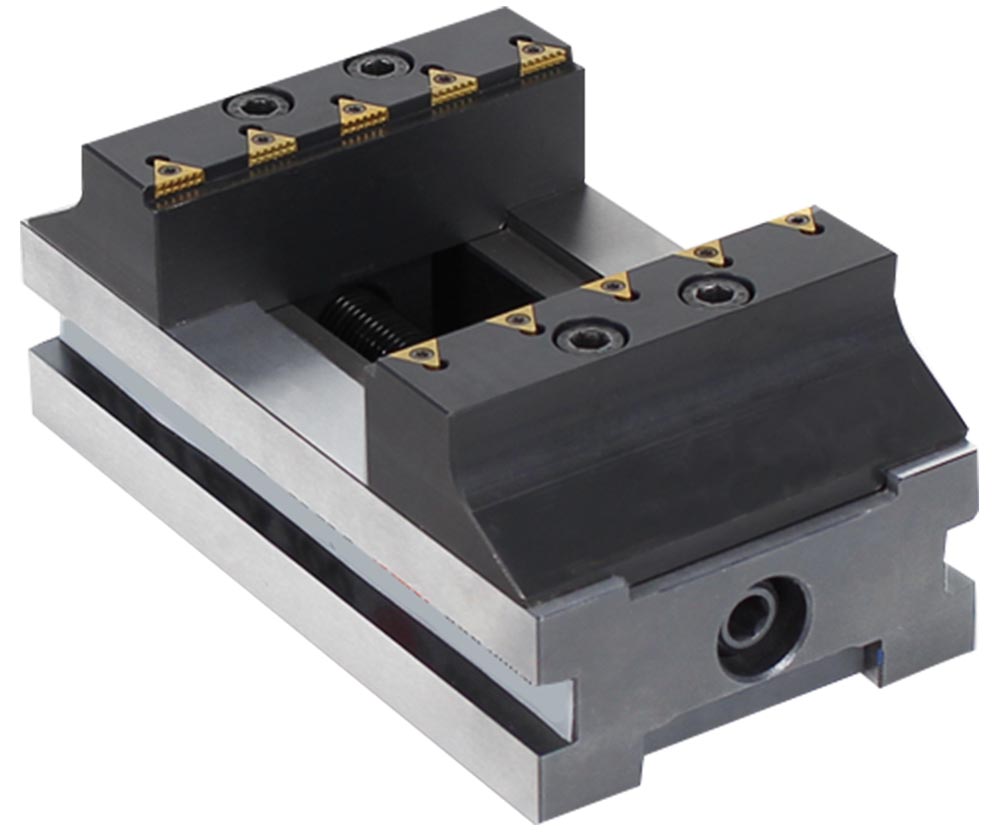

TriMax S Series Vises - Basic Set
TriMax S Series Vises - Basic Set

Part Options

DetailPart NumberT
Thread
mm
L
mm
L1
Max.
mm
L2
mm
L3
mm
W
mm
W1
mm
W2
mm
±.02
H
mm
H1
mm
K
mm
133398F677-584901F677-584901M8x1.2518085603010010070763.58

Description


TriMax self-centering vises feature high clamping forces and accuracy while using just 3.5 mm of workpiece surface utilizing patented TG GripSerts. The Basic TriMax S vise set allows a clamping range from 7-85 mm. The vise allows for first and secondary operations with one jaw set, eliminating the need for multiple set ups. Vise can be mounted on a T-slot or grid machine table as well as custom fixtures. Included with the vise are ten TG GripSert grippers for steel (TG-STD). Their low profile provides machining tool access required for 5-axis machining. Vise set also includes a wrench and a work stop with washer and screw. TriMax S vises allow for workpiece repeatability of just +/-.01 mm.
