Fixtureworks
Fixtureworks

CP155-LS/DS

Modular Pull Clamp System

Riser screws, tapered round or diamond type

Product Types

CP155-DS

Modular Pull Clamp System

Diamond Type

CP155-LS

Modular Pull Clamp System

Round type

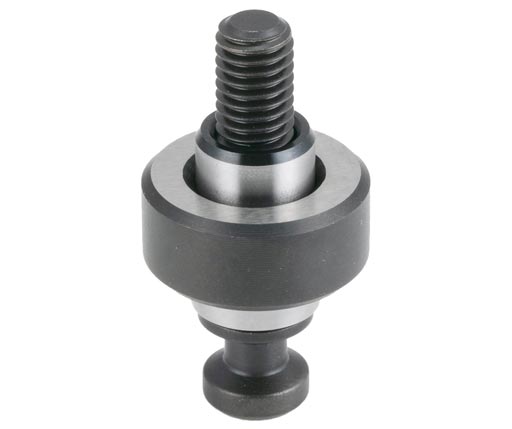

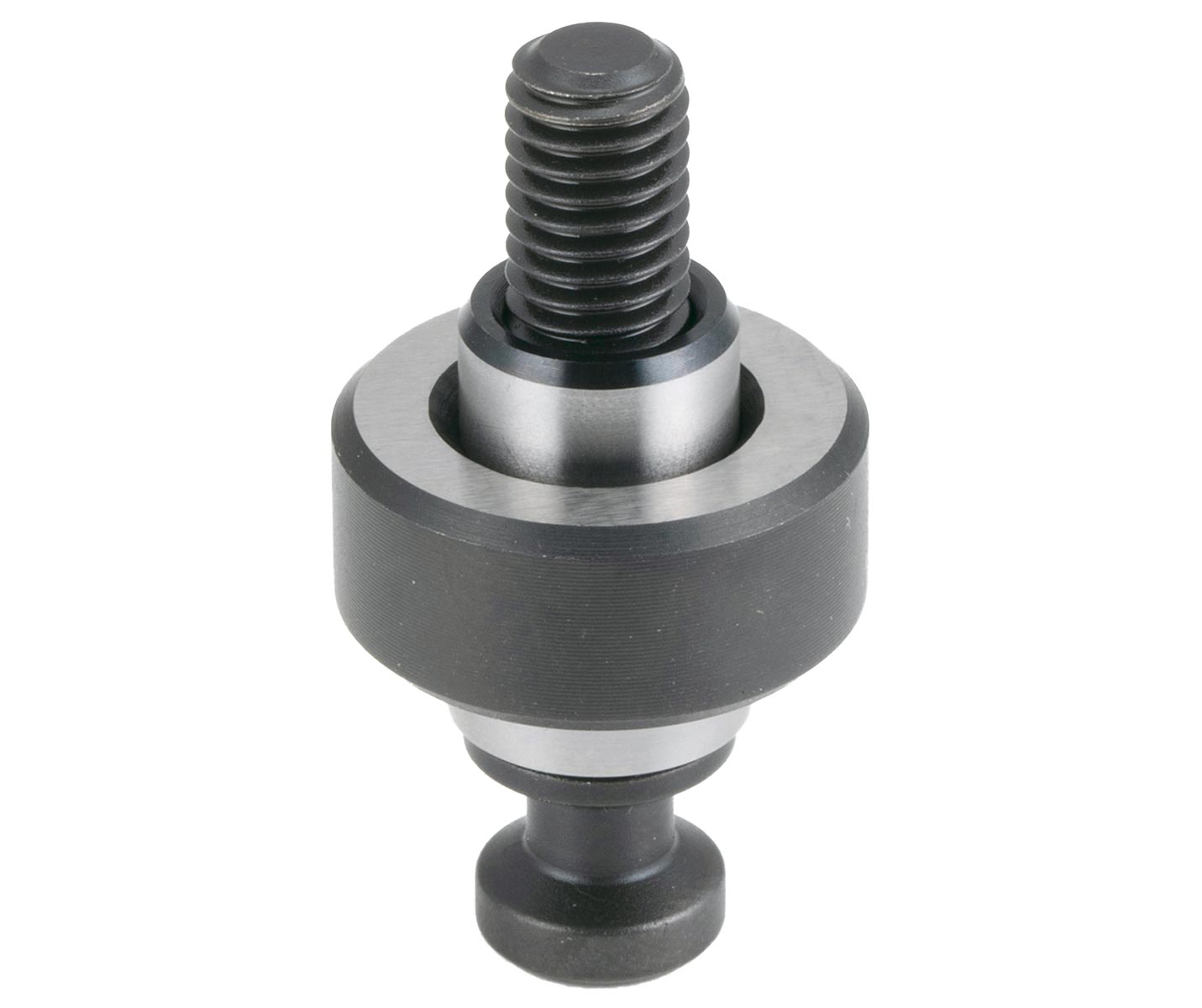

Modular Clamping System - Round Type Tapered Riser Screws (CP155-LS)
Modular Clamping System - Round Type Tapered Riser Screws (CP155-LS)

Part Options

Description

These tapered riser screws can be used to raise a workpiece in order to avoid tool interference with Clamping Modules (CP150, CP151, CP152). Use together with the diamond type for workpiece locating. The tapered bushing and removeable riser are made from 1045 steel, precision ground, with a black oxide finish. The clamping screw is made from 4135 steel, quenched and tempered, with a black oxide finish.
