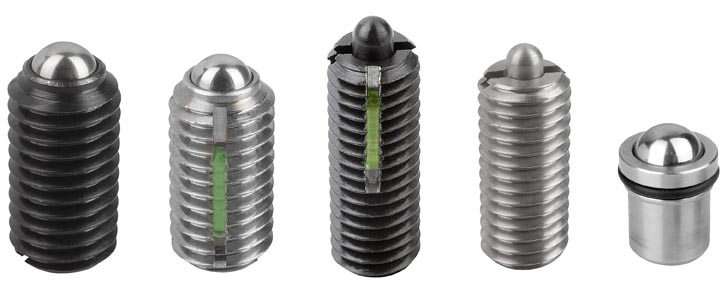

Kipp Spring Ball Plungers

High quality spring plungers in a variety of materials to suit your application.

kipp spring plungers



Spring and ball plungers are used to locate, stop, align and hold parts in a wide variety of applications. These products are well suited for fixturing applications where pressure is required for accurate positioning and indexing of components. They are available in an assortment of styles, lengths and sizes.

Types



Spring Plungers

Spring Plungers



Used to locate, stop, align and hold parts in a wide variety of applications. Available in an assortment of styles, lengths and sizes.



View Products







Materials & Features



ceramic

CERAMIC

Ceramic balls.

neoprene

STEEL

Steel and stainless balls.

nitrile

PLASTIC

Plastic pins.

nitrile

NYLON LOCKING

The nylon locking strip locks the threads in place to help limit further adjustment.



ceramic

SPRING FORCE

The spring begins to compress at the initial load. The ball or plunger is completely in the housing at the max load.







Line up

BLB

Ball Detents

Ball plunger receiver

03040

Installation Tool

Blind hole or top slot fastening, for spring plungers

030x

Spring Plungers

Slotted end, with steel, stainless or ceramic ball

0303x

Spring Plungers

Hex end, with steel, stainless or ceramic ball

0307x

Spring Plungers

Press fit, with steel, stainless or plastic ball

03065

Spring Plungers

Press fit, O-ring, with stainless steel ball

03074

Spring Plungers

Two stainless steel balls

0302x

Spring Plungers

Slotted end, with steel or stainless pin

030x

Spring Plungers

Hex end, with steel or stainless pin

0305x

Spring Plungers

Hex end, with steel or stainless body, plastic pin

030x

Spring Plungers w/ Nylon Locking

Slotted end, with steel or stainless ball

0303x

Spring Plungers w/ Nylon Locking

Hex end, with steel or stainless ball

0302x

Spring Plungers w/ Nylon Locking

Slotted end, with steel or stainless pin

030x

Spring Plungers w/ Nylon Locking

Hex end, with steel or stainless pin

0305x

Spring Plungers w/ Nylon Locking

Hex end, with steel or stainless body, plastic pin
