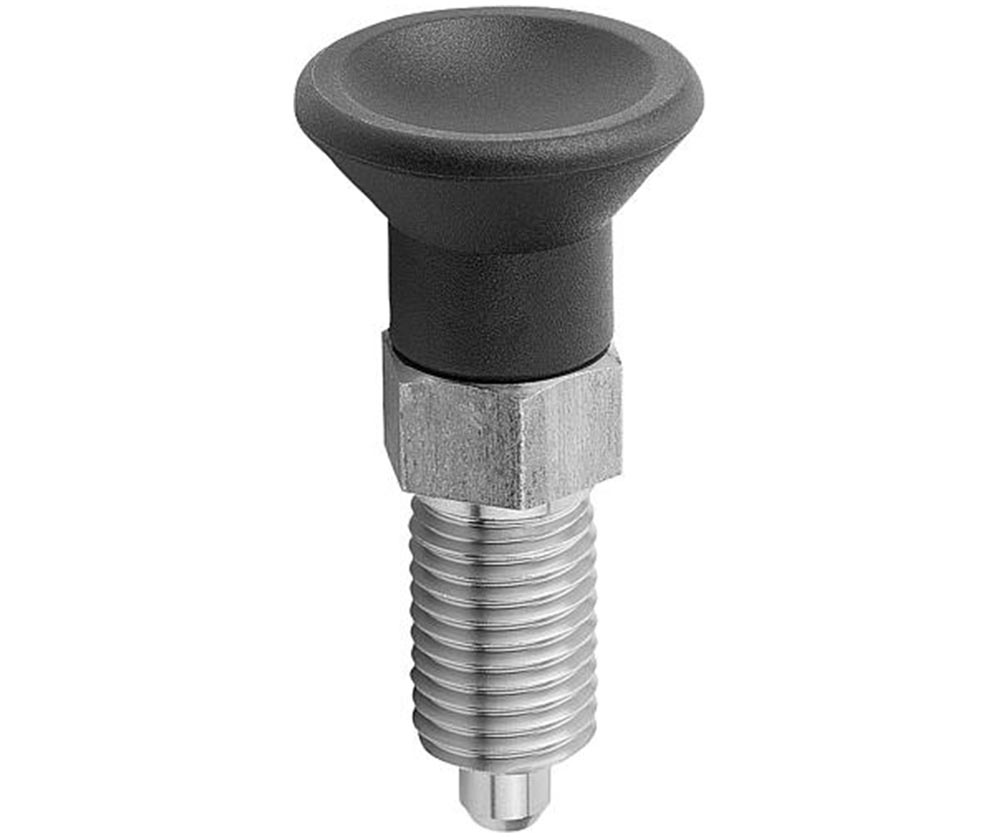

Part Number | D mm -.02/-.04 | D1 Thread mm | D2 mm | L mm | L1 mm | L2 mm | L3 mm | H mm | SW1 mm | F x 30 mm | F1 Initial Spring Force Lbs | F2 Final Spring Force Lbs |
---|---|---|---|---|---|---|---|---|---|---|---|---|
03089-11903 | 3 | M6X0.75 | 14 | 31.5 | 12 | 5 | 10 | 3.5 | 8 | .8 | 1.0 | 2.2 |
03089-11004 | 4 | M8X1.00 | 18 | 38.5 | 15 | 6 | 13 | 4.0 | 10 | 1.0 | 1.3 | 2.6 |
03089-11105 | 5 | M10X1.00 | 21 | 43.5 | 17 | 7 | 15 | 5.0 | 13 | 1.3 | 1.1 | 2.6 |
03089-11206 | 6 | M12X1.50 | 25 | 51.7 | 20 | 8 | 17 | 6.0 | 14 | 1.8 | 1.3 | 3.1 |
03089-11308 | 8 | M16X1.50 | 33 | 68.0 | 26 | 10 | 23 | 8.0 | 19 | 2.3 | 3.3 | 7.8 |
03089-11410 | 10 | M20X1.50 | 33 | 74.0 | 28 | 12 | 25 | 10.0 | 22 | 2.8 | 3.3 | 7.6 |
03089-11412 | 12 | M20X1.50 | 33 | 78.0 | 28 | 14 | 25 | 12.0 | 22 | 2.8 | 3.3 | 8.7 |
03089-11516 | 16 | M24X2.00 | 40 | 96.0 | 32 | 18 | 28 | 16.0 | 27 | 3.2 | 1.4 | 10.3 |
