Home > Fixture Clamps > ID/OD Form Holding Clamps > Form Holding Clamps

CP12x

Form Holding Clamps

ID/OD holding

Product Types

CP125

Form Holding Clamps

OD/ID holding clamp

CP126

Form Holding Clamps

Jaws for OD perimeter holding

CP127

Form Holding Clamps

Jaws for ID internal holding

CP127-B

Form Holding Clamps

Tapered screws for ID holding

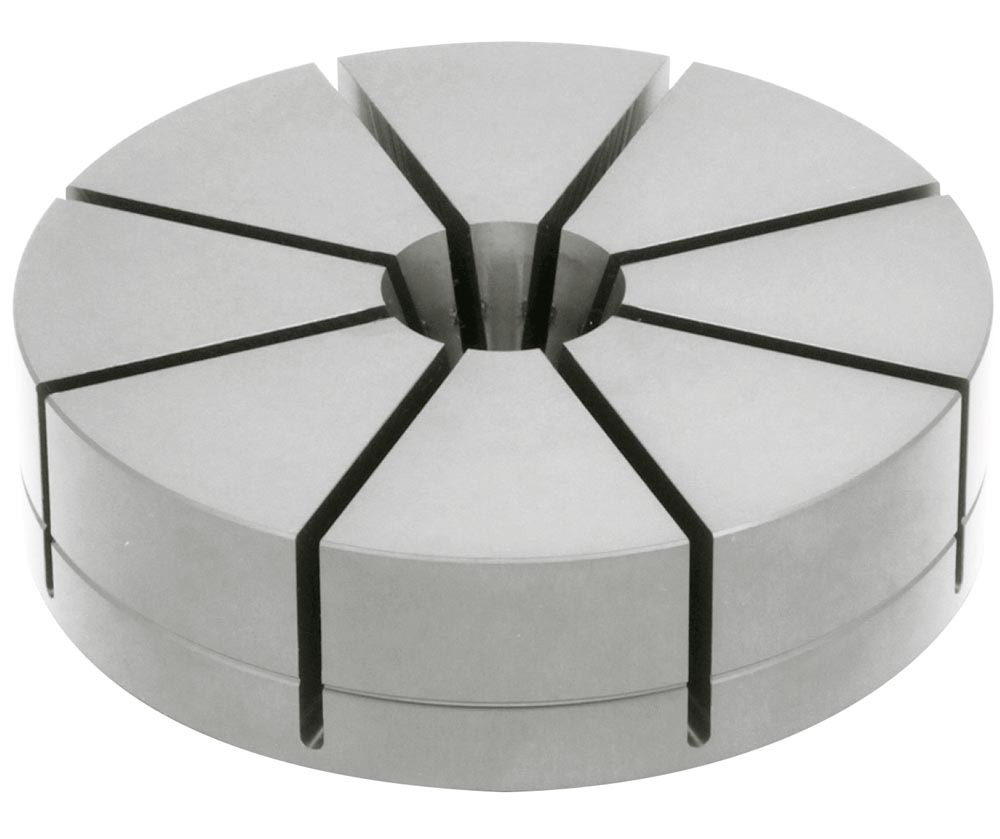

ID Holding - Jaws (CP127)
ID Holding - Jaws (CP127)

Part Options

Description

For ID clamping with Form Holding Clamps (CP125) using a Tapered Screw (127-B). When the tapered screw is pulled down by the cam cylinder, jaws are expanded outward to clamp the workpiece on the OD. The clamping stroke of each jaw is 0.15 mm. Furnished with an O-ring. The jaws are made from A7075 aluminum.
