GRL-Y/R/V/D

Bearing Covers

Groove surface

Product Types


Guide Wheel - Bearing Cover - Deep U-Groove (GRL-P-D)
Guide Wheel - Bearing Cover - Deep U-Groove (GRL-P-D)

Part Options

DetailPart NumberTypeD
mm
D1
mm
R
mm
W
mm
W1
mm
W2
mm
D2
mm
B
mm
T
Thread
mm
D3
mm
K
mm
151257GRL2606P-D-SUSGRL2606P-D-SUSA26191.693165---
151258GRL26M6P-D-SUSGRL26M6P-D-SUSB26191.6931656x1.008.03
151259GRL3508P-D-SUSGRL3508P-D-SUSA35262.1113187---
151260GRL35M6P-D-SUSGRL35M6P-D-SUSB35262.11131876x1.0010.25

Description

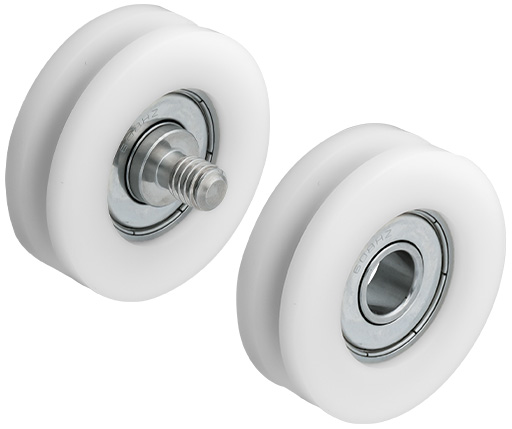

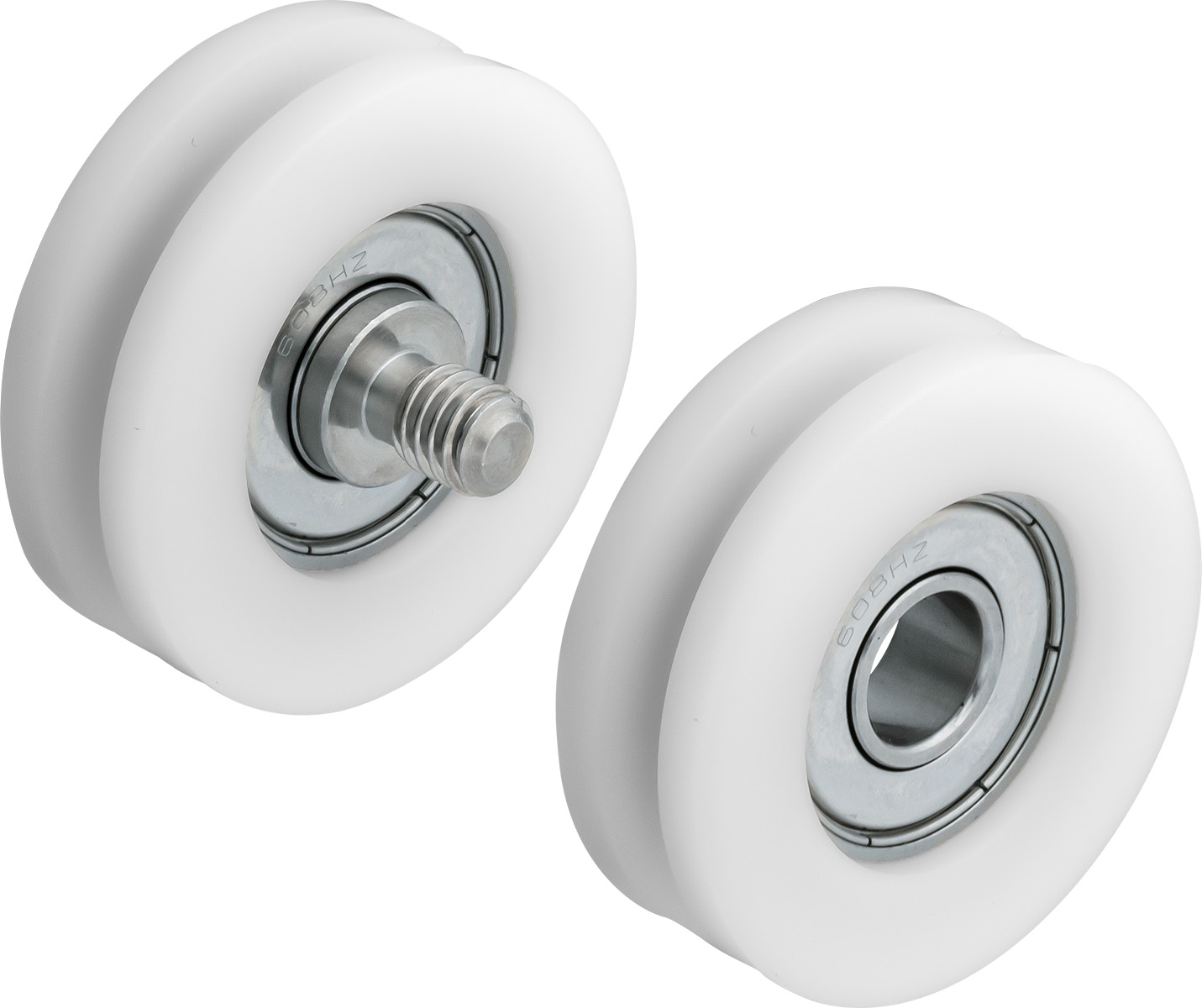

These bearing cover guide rollers feature a deep U-groove surface. The deep groove can hold wire securely and allows their use with pulleys. The plastic body allows for low-noise, silent-running operation. Available with stud or bearing mount. The body is made from white polyacetal plastic. The bearing and stud are made from stainless steel.
