Ball Type Swivel Positioners

Base design, Swivot

Product Types

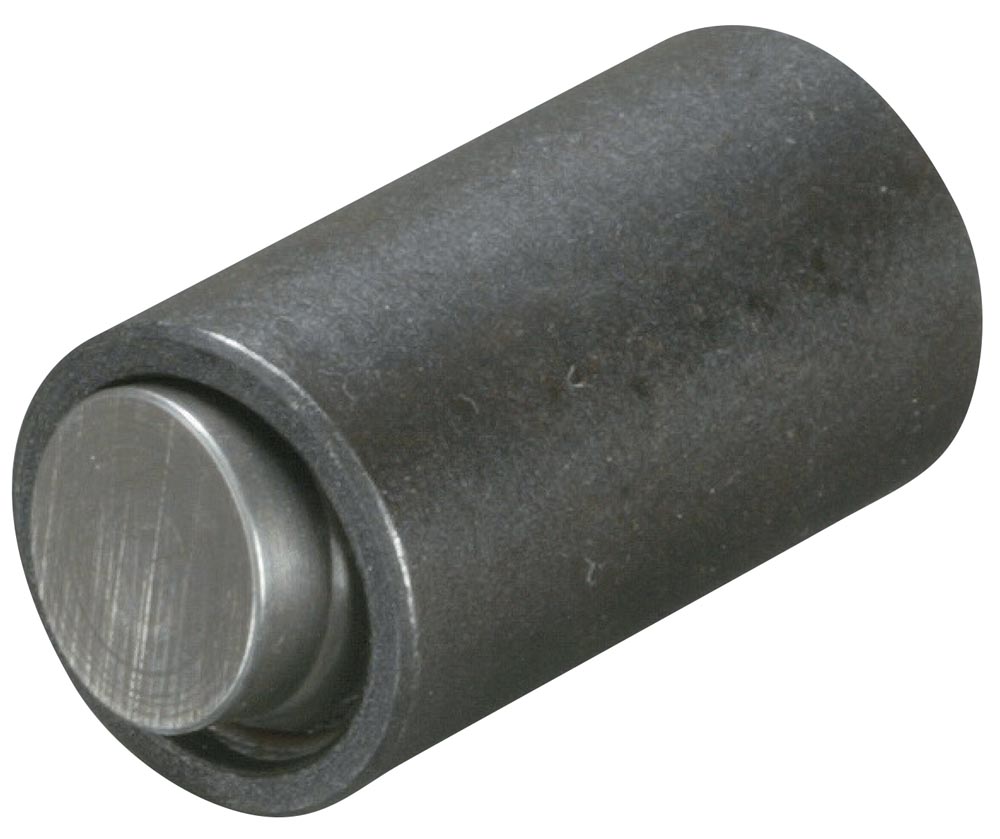

Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BBU-F)
Base Design Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (BBU-F)

Part Options

DetailPart NumberT
Thread
in
D
in
D1
in
+.000/-.005
L
in
±.002
L1
Max. Screw Depth
in
±.010
H1
in
V
Swivel
Degrees
F X 45°
in
Ball Dia
in
Ball Only Part No.Load Rating
Lbs

Description


Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.
