BUH

Ball Type Swivel Positioners

Hex head, Swivot

Product Types

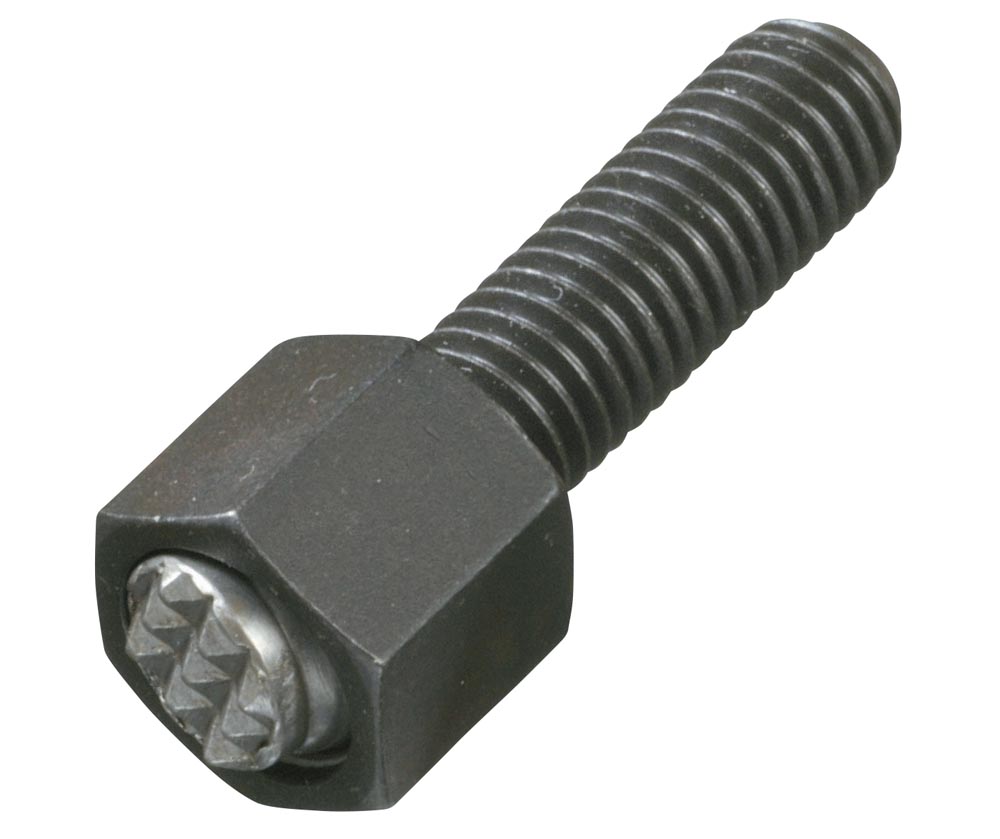

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (BUH-S)
Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Inch (BUH-S)

Part Options

DetailPart NumberT
Thread
in
D
in
L
in
H
in
±.002
H1
Standoff
in
SW
in
V
Swivel
Degrees
K
in
Ball Dia
in
Ball Only Part No.Tooth PatternLoad Rating
Lbs

Description


The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.
